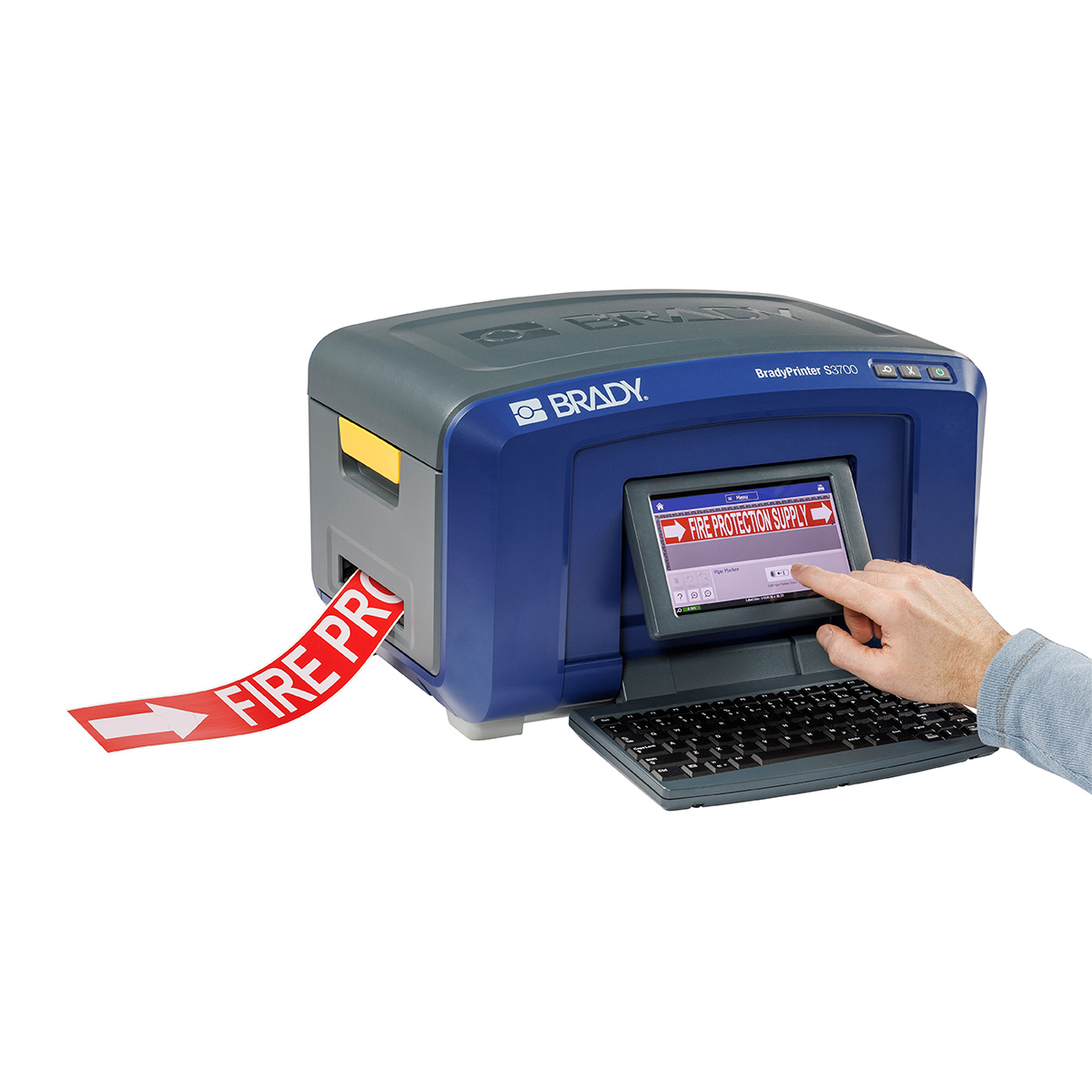

S3700 Multicolor Safety Sign and Label Printer with XY Cutter and Software
Safety & Facility ID
- Device Connectivity: Mobile device connected, PC connected, Stand-alone
- Cut Options Available: Cut at the end of print jobs, Cut between labels
- Color Printing Capability: Multi-Color
- Maximum Labels per Day: 600
- Print Technology: Thermal Transfer
- Maximum Label/Tape Width: 4 in
- Print Resolution: 300 dpi
- Software Package: Safety & Facility ID
Categories
Specifications
Key Characteristics
| Product Number | 176425 |
| UPC | 888434623152 |
| UOM | Each |
| Trade Name | BradyPrinter S3700 |
| Brand Name | Brady® |
Dimensions
| Dimensions | 11 in H x 19 in W x 14.25 in D |
| Height | 11 in |
| Width | 19 in |
| Depth | 14.25 in |
| Display Size | 6.11 x 3.42 in |
| Weight | 36.9 lb |
Material Characteristics
| Color | Blue, Gray |
Product Features
| Application | Asset Tracking, Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Temporary Labeling, Warehouse Marking |
| Shipped With Battery | No |
| Built-In Label Wizards | Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS |
| Cut Options Available | Cut at the end of print jobs, Cut between labels |
| Cutter Type | XY Cutter and Auto Cutter |
| Device Connectivity | Mobile device connected, PC connected, Stand-alone |
| Display Type | Color LCD Touch Screen |
| Estimated Media Changeover Time | 20 seconds |
| Keyboard Type | QWERTY |
| Media Sensor Type | Notch |
| Memory | 512 MB |
| Number of Symbols | 664 |
| On Screen Indicators | Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | Yes |
| Print Preview Feature? | Yes |
| Special Characters Quantity | 95 |
| Units | Inches, Millimeter, Points |
| User Interface Type | Keyboard, Mobile device, PC, Touch Screen |
| Battery Type | No Battery |
Printing Specifications
| Automatic Label Set Up | Yes |
| Barcode Symbologies - 2D | PDF417, QR code |
| Barcode Symbologies - Linear | Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A |
| Calibration Required? | No |
| Color Printing Capability | Multi-Color |
| Font Sizes | 4 - 600 pt |
| Font Styles | Arial, Arial 65, Courier New, MS Gothic, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana |
| Maximum Labels per Day | 600 |
| Maximum Label/Tape Width | 4 in |
| Minimum Label Length | 0.5 in |
| Maximum Print Speed | 5 in/s |
| Maximum Printed Label Length | 8.3 ft |
| Print Resolution | 300 dpi |
| Print Technology | Thermal Transfer |
| Media Sensor Adjustment | Automatic Adjustment |
Compatibility
| Compatible Media | B30-, B30C-, B30EP- |
| Label Material Types | Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth |
| Materials Supported | Continuous, Die-cut |
| Custom Labels Available | No |
| Maximum Print Width | 4 хи |
| Software Compatibility | Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use |
| Languages Available | Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish, Vietnamese |
What's Included
| Software Package | Safety & Facility ID |

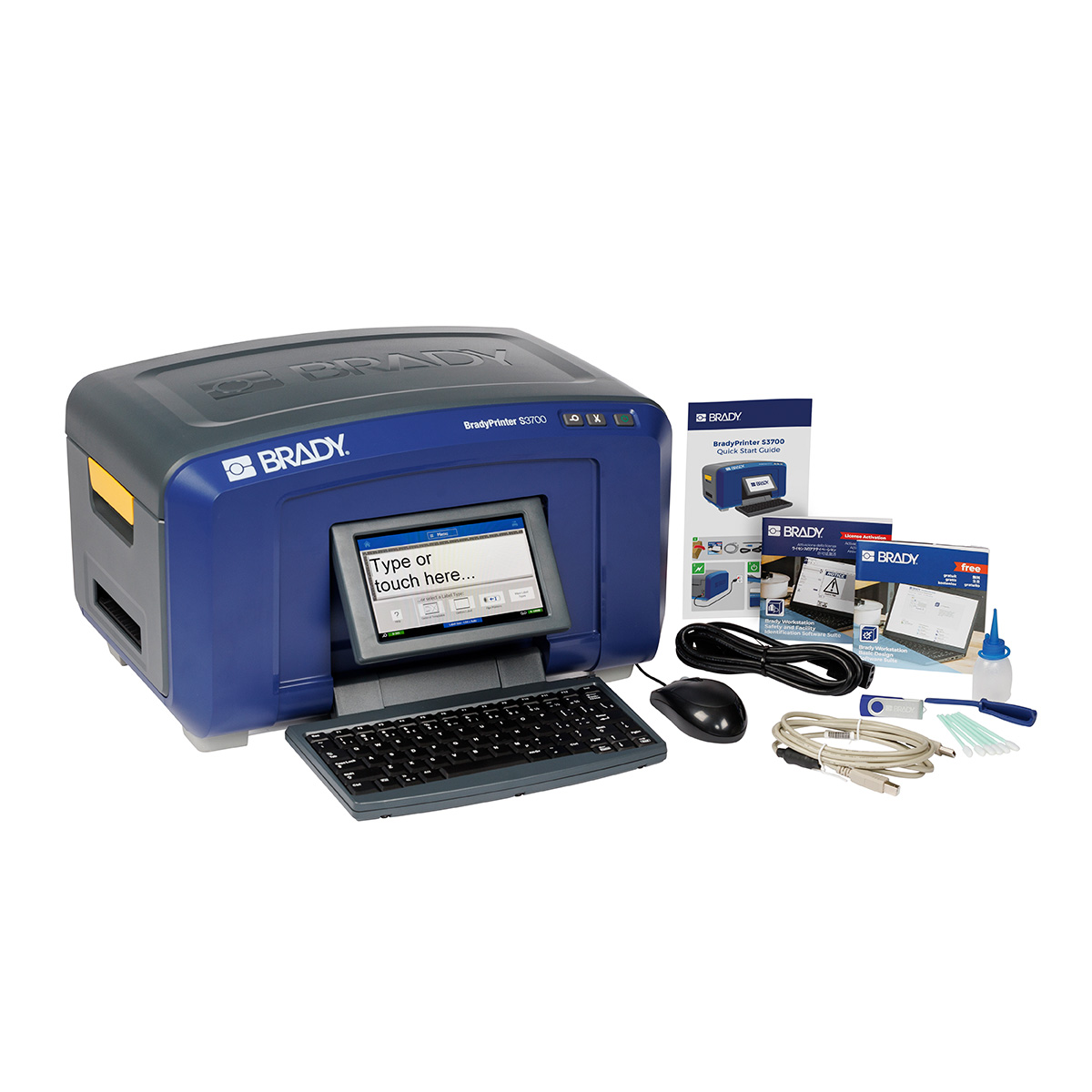

| Includes | (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) Cleaning Kit (PCK-6), (1) Mouse, (1) Power Cord, (1) Quick Start Guide, (1) S3700 Safety and Facility Printer, (1) USB Cord, (1) USB Flash Drive |
| Model | S3700 |
| Warranty | 5 Years |
Compliance
| Country of Origin | Malaysia |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101519 |
