V3200 Industrial Wireless Bluetooth Barcode Scanner and V1400 Cradle Kit
Overview
Device Drop Test & Durability: Resistant to 250-lb crushes, 8-foot drops, MIL-STD-810G shocks
Field of View: 30°H x 20°V (High Density), 50°H x 33.5°V (Wide)
Portability: Portable
Rotational Tolerance: +/- 180°
Sensor: CMOS 1.2 Megapixel
Wireless or Wired: Wireless
Dimensions: 6.299 in H x 10.04 in W x 4.449 in D
Color: Blue, Gray, Yellow
Specifications
Key Characteristics
| Product Number | 178324 |
| UPC | 888434641422 |
| UOM | Kit |
| Trade Name | V3200 |
| Brand Name | Brady® |
Dimensions
| Dimensions | 6.299 in H x 10.04 in W x 4.449 in D |
| Height | 6.299 in |
| Width | 10.04 in |
| Depth | 4.449 in |
| Cable Length | 3.28 ft |
| Weight | 3.46 lb |
Material Characteristics
| Color | Blue, Gray, Yellow |
Product Features
| Application | Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, General Identification, Inventory and Inspection Labeling, Warehouse Marking |
| Shipped With Battery | Yes |
| How Is Battery Shipped | Shipped in box, not installed |
| Battery mAh Rating | 3300 mAh |
| Battery Weight | 0.14 lb |
| Connectivity Options | Bluetooth® 5 Low Energy (class II) |
| Device Drop Test & Durability | Resistant to 250-lb crushes, Resistant to 8-foot drops, Resistant to military-grade shocks (MIL-STD-810G) |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Scanner Model | V3200 |
| Portability | Portable |
| Wireless or Wired | Wireless |
| Battery Type | Rechargeable Lithium-ion Battery |
| Rotational Tolerance | +/- 180° |
| Sensor | CMOS 1.2 Megapixel |
| Field of View | High Density Field: 30° Horizontal by 20° Vertical, Wide Field: 50° Horizontal by 33.5° Vertical |
| Focal Point | Approximately 100 mm |
| Power Requirements | 10W |
| Number of Scans | Up to 100,000 scans per charge |
| Optical Resolution | High Density Field: 960 x 640, Wide Field: 960 x 640 |
| Pitch | ± 65° (from front to back) |
| Skew | ± 60° from plane parallel to symbol (side-to-side) |
| Target Beam | Single Blue targeting bar (470nm) |
| Type | Includes flying leads power cable |
| Image Output Options | JPEG, PGM |
| 1D / 2D Barcode Capability | 1D, 2D |
| Decode Capability - 1D | BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN |
| Decode Capability - 1D Stacked | Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 |
| Decode Capability - 2D | Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode® (proprietary--add'l license req'd), Grid Matrix, HanXin Code, Micro QR Code, QR Code, QR Model 1 |
| Decode Capability - Postal | Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags |
| Field Selection | High Density or Wide Field |
| Advanced Data Editing | JavaScript |
| Symbol Contrast | 15% minimum reflectance difference |
| Ambient Light Immunity | Sunlight: Up to 9,000ft-candles/96,890 lux |
| Charging Station w/BT Radio Communication Interfaces | RS232, USB 2.0 (generic HID, HID keyboard, virtual com port) |
| Reader/Scanner Unit Communication | Bluetooth 5 Low Energy (class II) |
| Data Parsing | Driver's licenses and ID Cards (optional license required), GS1, HIBC |
| Data Structure Validation | HIBC UDI, ISO 15418, ISO 15434 |
What's Included

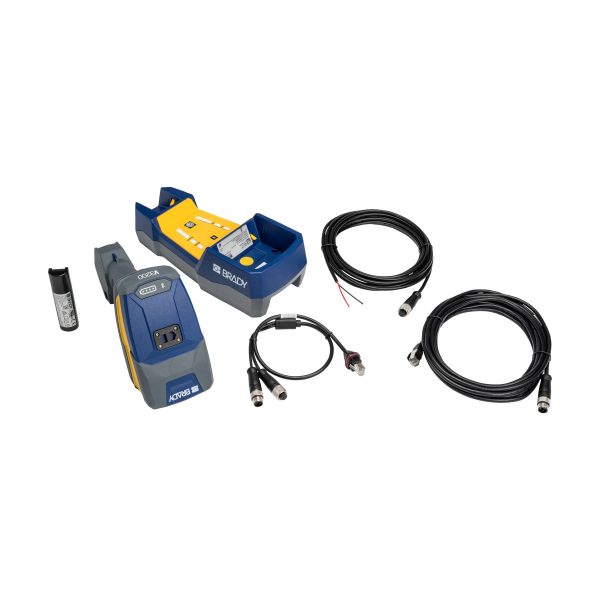

| Includes | (1) V3200 Wireless Barcode Scanner, (1) V1400 Industrial Ethernet Bluetooth Cradle, (1) V1200 Li-ion Battery (177234), (1) Power and Comms Connector Cable - .5m (178326), (1) M12 to RJ45 Comms Cable - 5m (178331), (1) M12 to Flying Leads Cable - 5m (178330) |
| Model | V3200 |
| Warranty | 3 Years |
Compliance
| California Prop 65 | Prop 65 WARNING: Reproductive Harm - www.p65warnings.ca.gov |
| Country of Origin | Malaysia |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8504.40.9580 |
| Ingress Protection Rating | IP65 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 43211701 |
