M610 Handheld Label Maker with Hard Case
Overview
- Maximum Labels per Day: 750
- Maximum Label/Tape Width: 2 in
- Print Technology: Thermal Transfer
- Color Printing Capability: Single Color
- Print Resolution: 300 dpi
- Device Connectivity: PC connected, Stand-alone
- Software Package: Basic Design Suite
Specifications
Key Characteristics
| Product Number | 175669 |
| UPC | 888434620458 |
| UOM | Each |
| Trade Name | M610 |
| Brand Name | Brady® |
Dimensions
| Dimensions | 12.93 in H x 4.22 in W x 4.19 in D |
| Height | 12.93 in |
| Width | 4.22 in |
| Depth | 4.19 in |
| Display Size | 2.8 in |
| Weight | 3.10 lb |
Material Characteristics
| Color | Gray, Yellow |
Product Features

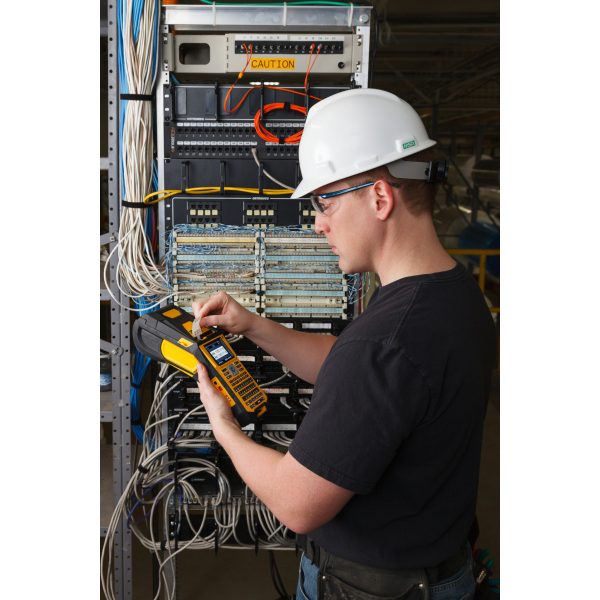

| Application | Asset Tracking, Circuit Board Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Safety Identification, Wire and Cable Labeling |
| Shipped With Battery | Yes |
| How Is Battery Shipped | Shipped in box, not installed |
| Battery mAh Rating | 2700 mAh |
| Battery Weight | 0.40 lb |
| Built-In Label Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap |
| Connectivity Options | Standalone Use, USB 2.0 |
| Cutter Type | Manual Cut |
| Device Connectivity | PC connected, Stand-alone |
| Device Drop Test & Durability | Resistant to 4-foot drops, Resistant to military-grade shocks (MIL-STD-810G) |
| Display Type | Color LCD Screen, LCD backlit graphics display |
| Keyboard Type | QWERTY |
| Memory | 512 MB RAM, 256 MB Flash |
| Number of Symbols | 480 |
| On Screen Indicators | Battery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | User Configurable |
| Recharge Time | 4 hours |
| Special Characters Quantity | 123 |
| User Interface Type | Full QWERTY Keyboard, PC |
| Battery Type | Rechargeable Lithium-ion Battery |
Printing Specifications
| Barcode Symbologies - 2D | Data Matrix, QR code |
| Barcode Symbologies - Linear | Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady Workstation, UPC-A, UPC-E |
| Calibration Required? | Automated through Smart Cell |
| Color Printing Capability | Single Color |
| Font Sizes | 4 - 170 pt |
| Font Styles | Brady Alpine, Brady Fixed Width |
| Label Retention Feature | Yes |
| Maximum Labels per Day | 750 |
| Maximum Label/Tape Width | 2 in |
| Minimum Label Length | 0.236 in |
| Maximum Print Speed | 2 in/s |
| Maximum Printed Label Length | 40 in |
| Print Resolution | 300 dpi |
| Print Technology | Thermal Transfer |
Compatibility
| Compatible Media | BM-, BMC-, M6-, M6C- |
| Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyethylene, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth |
| Materials Supported | Bulk, Continuous, Custom, Die-cut |
| Custom Labels Available | Yes |
| Maximum Print Width | 2 in |
| Phones & Tablets Supported | Android devices with Android OS 5+, iPhone 5S or newer with iOS 10+ |
| Software Compatibility | Brady Workstation |
| Languages Available | Bulgarian, Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish |
What's Included
| Software Package | Basic Design Suite |

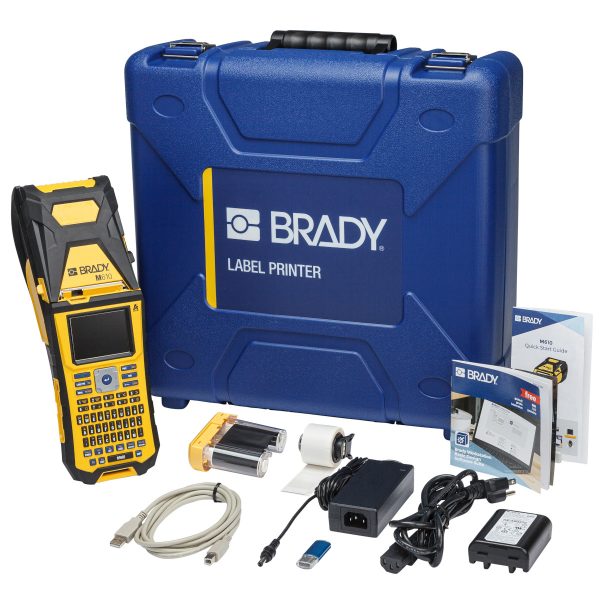

| Includes | (1) AC Adapter/Battery Charger (M41-51-61-AC), (1) Black Ribbon (M61-R4310), (1) Brady Workstation Design & Print Essentials Insert, (1) Hard Case (M610-HC), (1) Li-ION Rechargeable Battery (M-LION-BATTERY), (1) M610 Label Printer (M610), (1) Printed Quick Start Guide, (1) Product USB, (1) Self Laminating Cable Wraps (M6-11-427), (1) USB Cable |
| Model | M610 |
| Warranty | 2 Years |
Compliance
| California Prop 65 | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Country of Origin | Malaysia |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101520 |
