M511 Portable Bluetooth Label Printer with Product and Wire ID Software and Accessories Kit
Overview
- Color Printing Capability: Single Color
- Maximum Label/Tape Width: 1.5 in
- Maximum Labels per Day: 1000
- Print Resolution: 300 dpi
- Print Technology: Thermal Transfer
- Software Package: Product & Wire ID
- Device Connectivity: Mobile device connected, PC connected
Categories
Specifications
Key Characteristics
| Product Number | 176493 |
| UPC | 888434623831 |
| UOM | Kit |
| Trade Name | M511 |
| Brand Name | Brady® |
Dimensions
| Dimensions | 3.6 in H x 6 in W x 6.4 in D |
| Height | 3.6 in |
| Width | 6 in |
| Depth | 6.4 in |
| Weight | 2.646 lb |
Material Characteristics
| Color | Black, Yellow |
Product Features
| Application | Asset Tracking, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Safety Identification, Warehouse Marking, Wire and Cable Labeling |
| Shipped With Battery | Yes |
| How Is Battery Shipped | Shipped installed in equipment |
| Battery mAh Rating | 2450 mAh |
| Built-In Label Wizards | Breaker Box, Flags, General, Patch Panel, Pipe Marker, Safety, Sleeves, Slide, Terminal Block, Tube, Vial, Wire Wrap |
| Connectivity Options | Bluetooth® 5 Low Energy (class II) |
| Cutter Type | Auto Cutter |
| Device Connectivity | Mobile device connected, PC connected |
| Device Drop Test & Durability | Resistant to 250-lb crushes, Resistant to 6-foot drops, Resistant to military-grade shocks (MIL-STD-810G), Sand & Dust |
| Device Indicators | Bluetooth indicating lights: pulsing blue = broadcasting signal; solid blue = device connected or paired, LEDs indicating battery life |
| Display Type | None |
| Keyboard Type | None |
| Memory | Memory via connected mobile device |
| Number of Symbols | Dependant on software |
| On Screen Indicators | Error Messaging |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | User Configurable, Yes |
| Recharge Time | 2.5 hours |
| Special Characters Quantity | Determined by software |
| User Interface Type | Mobile device, PC |
| Battery Type | Internal, not removable, Lithium-ion Battery |
Printing Specifications
| Barcode Symbologies - 2D | Data Matrix, More through Brady Workstation, More through software, PDF417, QR code |
| Barcode Symbologies - Linear | Code 128, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Code 93 Full ASCII, EAN-13, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8, EAN-8 Extension 2, EAN-8 Extension 5, GS1-128, HIBC, Interleaved 2 of 5, JAN-13, JAN-8, UPC-A, UPC-E |
| Calibration Required? | Automated through Smart Cell |
| Color Printing Capability | Single Color |
| Font Sizes | 4 - 150 pt |
| Font Styles | Determined by software |
| Label Retention Feature | Yes |
| Maximum Labels per Day | 1000 |
| Maximum Label/Tape Width | 1.5 in |
| Minimum Label Length | 0.240 in |
| Maximum Print Speed | 1.33 in/s |
| Maximum Printed Label Length | 39 in |
| Print Resolution | 300 dpi |
| Print Technology | Thermal Transfer |
Compatibility
| Compatible Media | M4-, M4C-, M5-, M5C- |
| Label Material Types | BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper |
| Materials Supported | Continuous, Die-cut |
| Custom Labels Available | No |
| Maximum Print Width | 1.44 in |
| Phones & Tablets Supported | Android devices with Android OS 6+, iPhone 5S or newer with iOS 10+ |
| Software Compatibility | Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use |
| Languages Available | Arabic (Egypt), Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (universal), Swedish, Thai, Turkish, Vietnamese |
What's Included
| Software Package | Product & Wire ID |

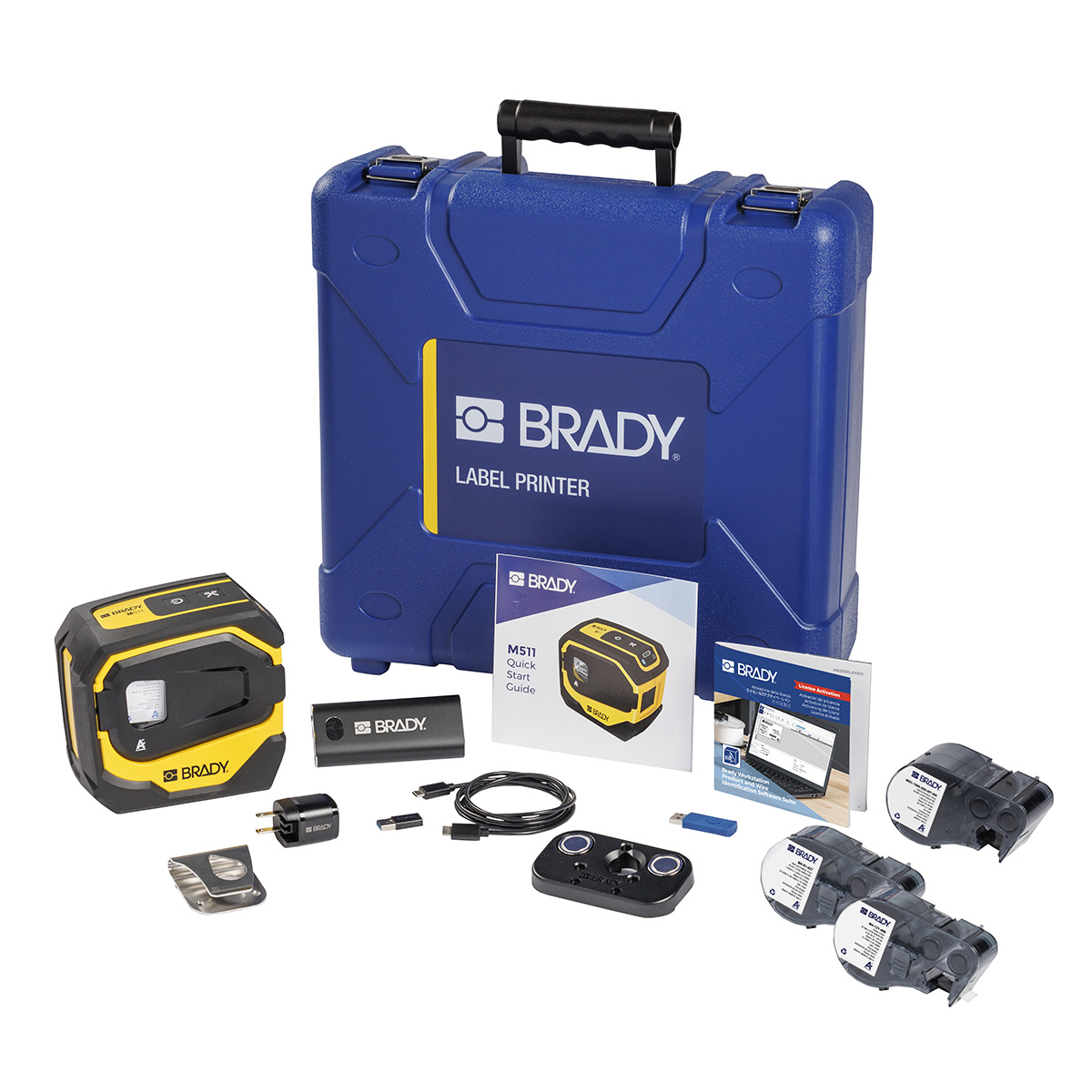

| Includes | (1) AC Adapter (North America), (1) Brady Workstation Design & Print Pro Insert - Product and Wire ID Suite - Product and Wire ID Suite, (1) Hard Case (M511-HC), (1) Indoor/Outdoor Vinyl Label Cartridge (M5C-1500-595-WT-BK), (1) M511 Printer, (1) Magnet (M51-MAGNET), (1) Nylon Cloth Label Cartridge (M4-131-499), (1) Quick Start Guide, (1) Self Laminating Cable Wraps (M4-91-427), (1) Utility Hook (M51-HOOK), (1)Power Brick for M211 & M511 Printers (M211-M511-POWER) |
| Model | M511 |
| Warranty | 2 Years |
Compliance
| Country of Origin | Malaysia |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101520 |
