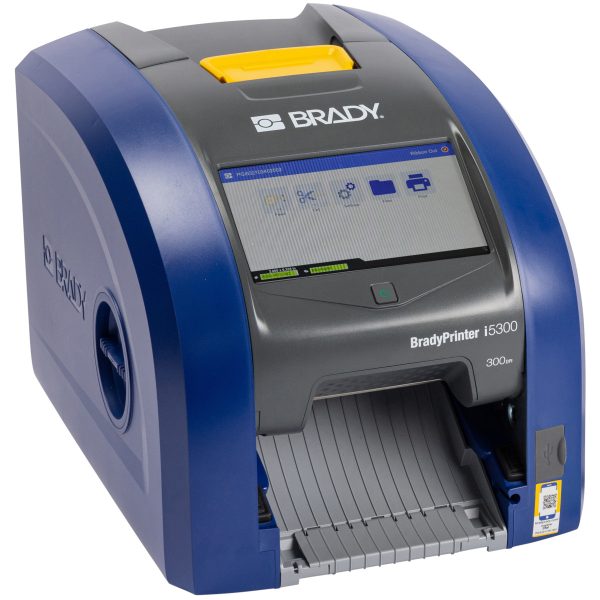

Brady Industrial Cable Label Printer i5300 – 300 dpi with Wi-Fi & Wire ID Software
Overview
Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut
Device Connectivity: PC connected
Color Printing Capability: Single Color
Maximum Label/Tape Width: 4.25 in
Maximum Labels per Day: 5000
Print Resolution: 300 dpi
Print Technology: Direct Thermal, Thermal Transfer
Specifications
Key Characteristics
| Product Number | 151290 |
| UPC | 754473637606 |
| UOM | Each |
| Trade Name | BradyPrinter i5300 |
| Brand Name | Brady® |
Dimensions
| Dimensions | 11 in H x 11.2 in W x 15.8 in D |
| Height | 11 in |
| Width | 11.2 in |
| Depth | 15.8 in |
| Display Size | 7 in |
| Weight | 33 lb |
Material Characteristics
| Color | Blue, Gray |
Product Features
| Application | Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Laboratory Labeling, Pipe and Valve Marking, Solar Panel Labeling, Wire and Cable Labeling |
| Built-In Label Wizards | No |
| Cut Options Available | Cut at the end of print jobs, Cut between labels, Full Cut |
| Cutter Type | Auto Cutter |
| Device Connectivity | PC connected |
| Display Type | Color LCD Touch Screen |
| Estimated Media Changeover Time | 15 seconds for media roll, 5 seconds for ribbon |
| Keyboard Type | None |
| Memory | 512 MB RAM, 195 MB IFFS Flash |
| Number of Symbols | See Brady Workstation Software |
| On Screen Indicators | Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi |
| Plug Type | US |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Auto Shut-Off / Power Conserve | Yes |
| Print Preview Feature? | Yes |
| Units | Inches, Millimeter, Points |
| User Interface Type | PC, Touch Screen |
| Battery Type | Internal, not removable |
| Operating System | Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 |
Printing Specifications
| Automatic Label Set Up | Yes |
| Barcode Symbologies - 2D | Aztec, Data Matrix, PDF417, QR code |
| Barcode Symbologies - Linear | Codabar, Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, UPC-A |
| Calibration Required? | No |
| Color Printing Capability | Single Color |
| Font Sizes | 4 - 250 pt |
| Font Styles | Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, TrueType fonts storable to printer, Verdana |
| Maximum Labels per Day | 5000 |
| Maximum Label/Tape Width | 4.25 in |
| Maximum Print Speed | 10 in/s |
| Minimum Label Length | 0.2 in |
| Print Resolution | 300 dpi |
| Print Technology | Direct Thermal, Thermal Transfer |
| Programming Language | BPL (Brady Programming Language) |
| Media Sensor Adjustment | Automatic Adjustment |
Compatibility
| Compatible Media | B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R- |
| Label Material Types | Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth |
| Materials Supported | Continuous, Custom, Die-cut |
| Custom Labels Available | Yes |
| Maximum Print Width | 4.015 in |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use |
| Languages Available | Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), German, Hungarian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Spanish (universal), Thai, Turkish, Vietnamese |
What's Included
| Software Package | Product & Wire ID |
| Includes | (1) Brady Workstation Design & Print Essentials Insert - Product and Wire ID Suite, (1) BradyPrinter i5300 Industrial Label Printer, (1) Cleaning Kit, (1) Jump drive with How To Videos and 3rd Party Win Driver, (1) Power Cable, (1) QuickStart Guide, (1) Stylus, (1) USB Cable |
| Model | i5300 |
| Warranty | 5 Years |
Compliance
| Country of Origin | Malaysia |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101519 |
